Autodesk OAuth 2.0 (Two-Legged) connector profile – StackOne setup guide

An Autodesk Platform Services (APS) developer account is required, and you must be an administrator of the BIM 360 / ACC account where the app will be used.

Register OAuth application

Create an OAuth application in the Autodesk Platform Services portal to obtain a Client ID and Client Secret for the client credentials flow.

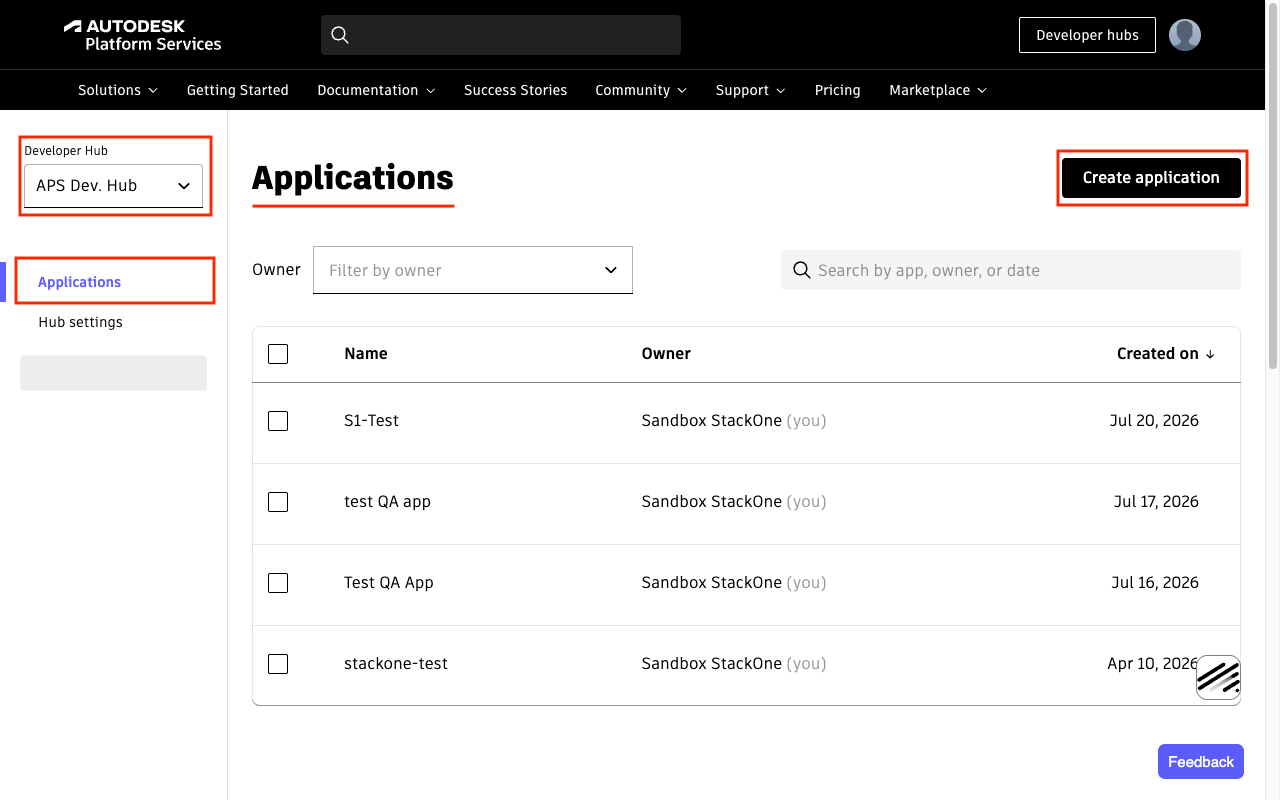

The APS Developer Hubs page showing the Applications list with the Create application button in the top right.

Open Applications page

After signing in, you will be directed to the Applications page.

Click the Create application button in the top right.

Create application

Fill in the details in the dialog.

App Name: e.g. StackOne Integrations
Application Type: select Server-to-Server App
Click Create.

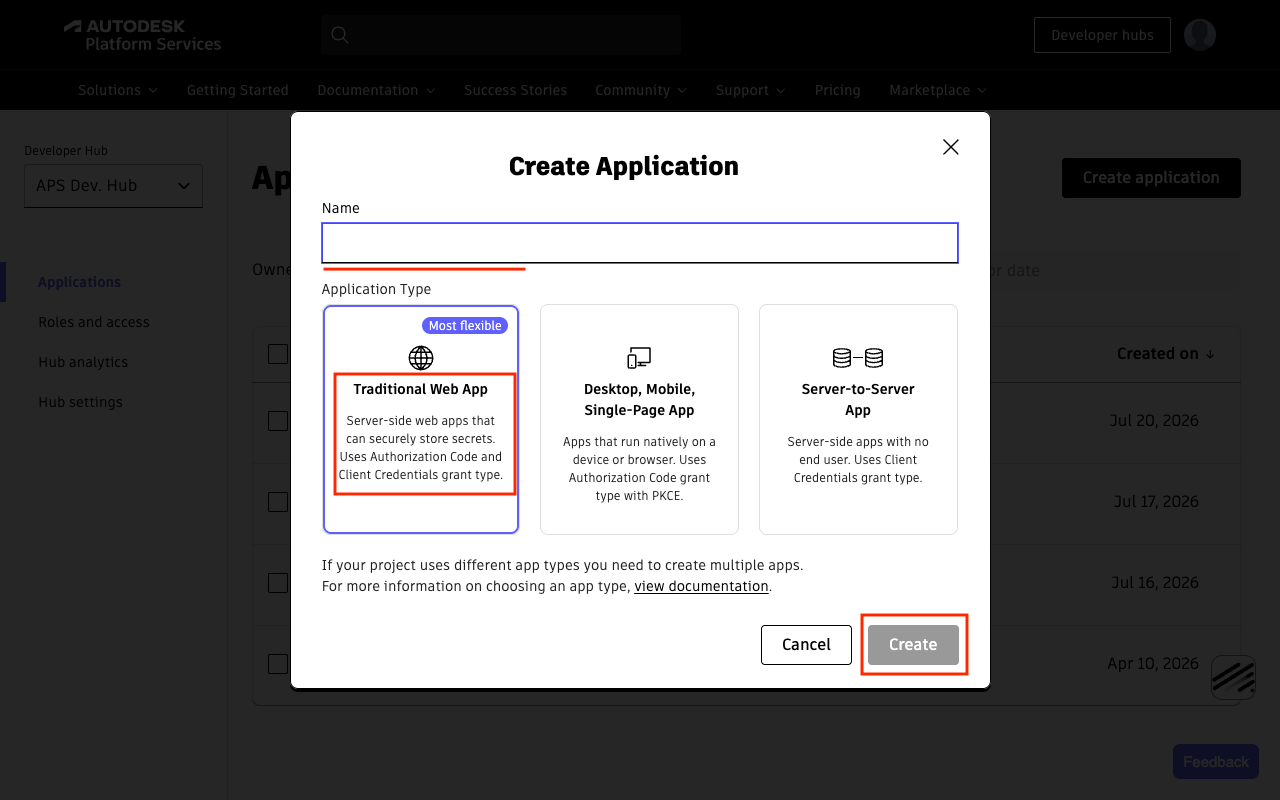

The Create Application dialog showing the Name field and Application Type options — Traditional Web App, Desktop/Mobile/Single-Page App, and Server-to-Server App.

Configure Callback URL

After the app is created, configure the Callback URL in the app settings page (required by the portal even though 2-legged does not use it).

Callback URL: https://api.stackone.com/connect/oauth2/autodesk/callback
Click Save changes.

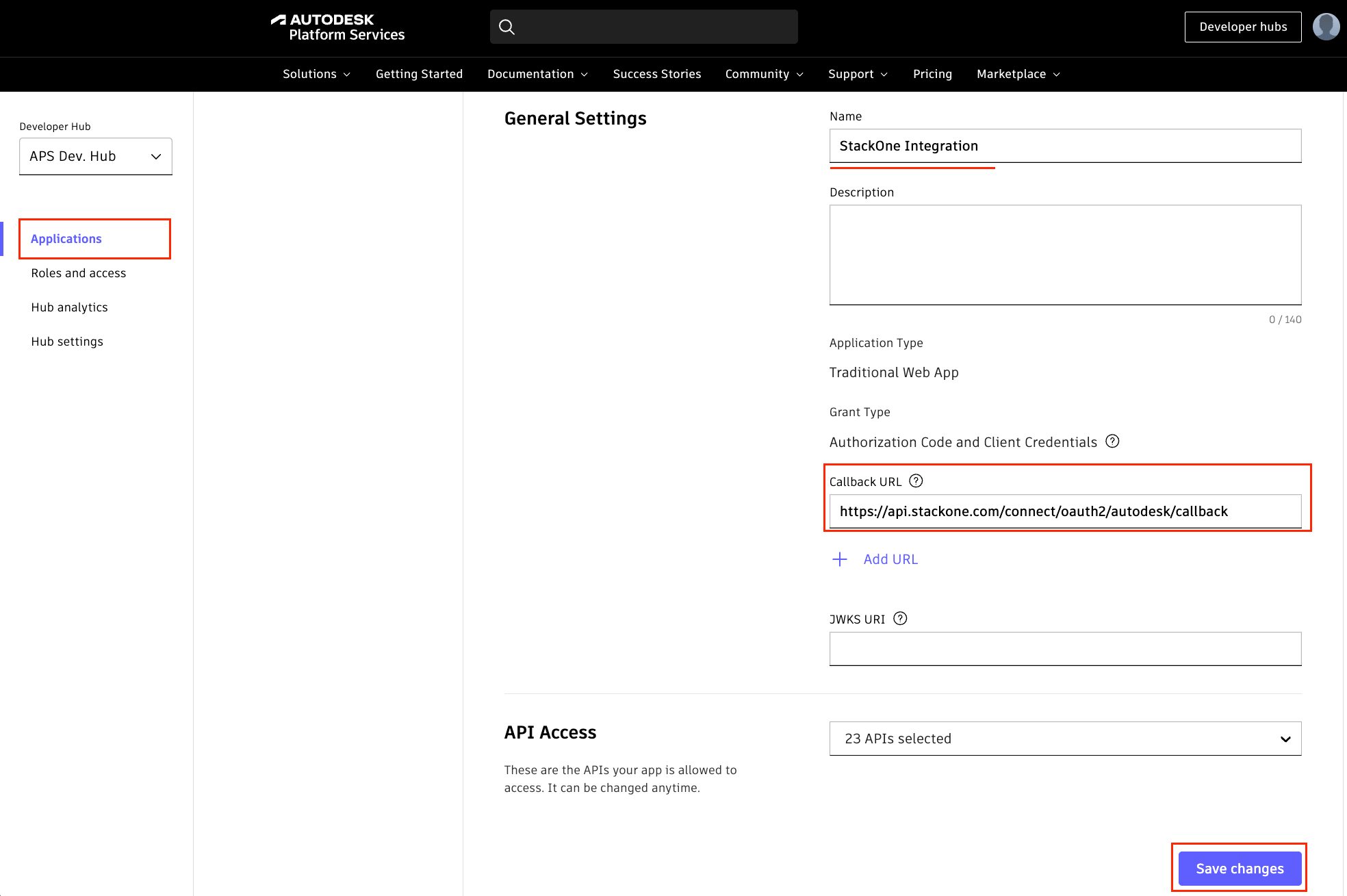

The app settings General Settings section showing the Callback URL field.

Select APIs

Navigate to the API Access section in the app settings page. Enable the following APIs required for the StackOne integration.

Data Management API — required for data:* and bucket:* scopes (files, folders, hubs, projects, storage).
Forma API (formerly ACC) — required for account:* scopes (account admin, projects, companies, users).
BIM 360 API — required for BIM 360 account administration endpoints (/hq/v1/accounts/...).
Webhooks API — required if using webhook actions.
You may deselect any other APIs you do not need.

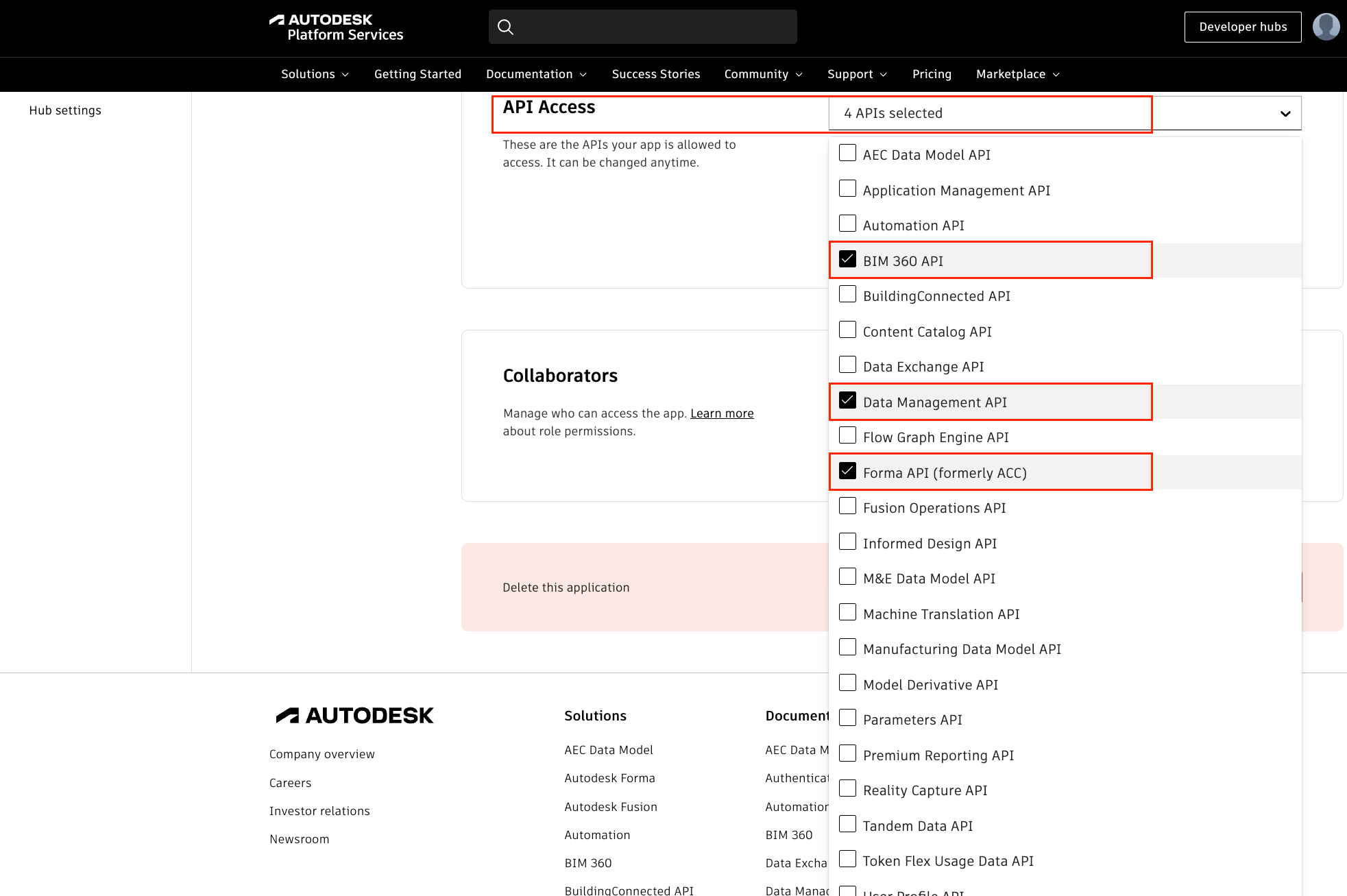

The API Access dropdown showing the required APIs — Data Management API, Forma API (formerly ACC), BIM 360 API, and Webhooks API.

Configure scopes

Enables actions: Add Project User, Create Account Company, Create Account Project, Create Account User, Create Bucket, Create Business Units, Create Version, Create Webhook, Delete Bucket, Delete Object, Delete Webhook, Get Account Company, Get Account User, Get Bucket Details, Get Signed S3 Download URL, Get Signed S3 Upload URLs, Get Webhook, List Account Companies, List Account Projects, List Account Users, List Bucket Objects, List Buckets, List Business Units, List Project Industry Roles, List Project Users, List Webhooks, List Webhooks By System, Signed S3 Upload, Update Account Company, Update Account Project, Update Account User, Update Item, Update Project User, Update Webhook, Upload Binary To Signed S3 URL

The following scopes are configured in StackOne’s connector setup, not in the APS portal. Select the scopes required for your integration.

Copy credentials

Open the application details page and copy the credentials.

Copy the Client ID.
Copy the Client Secret and store it securely for use later.
The Client Secret is shown in full only once — regenerate it from the app details if lost.

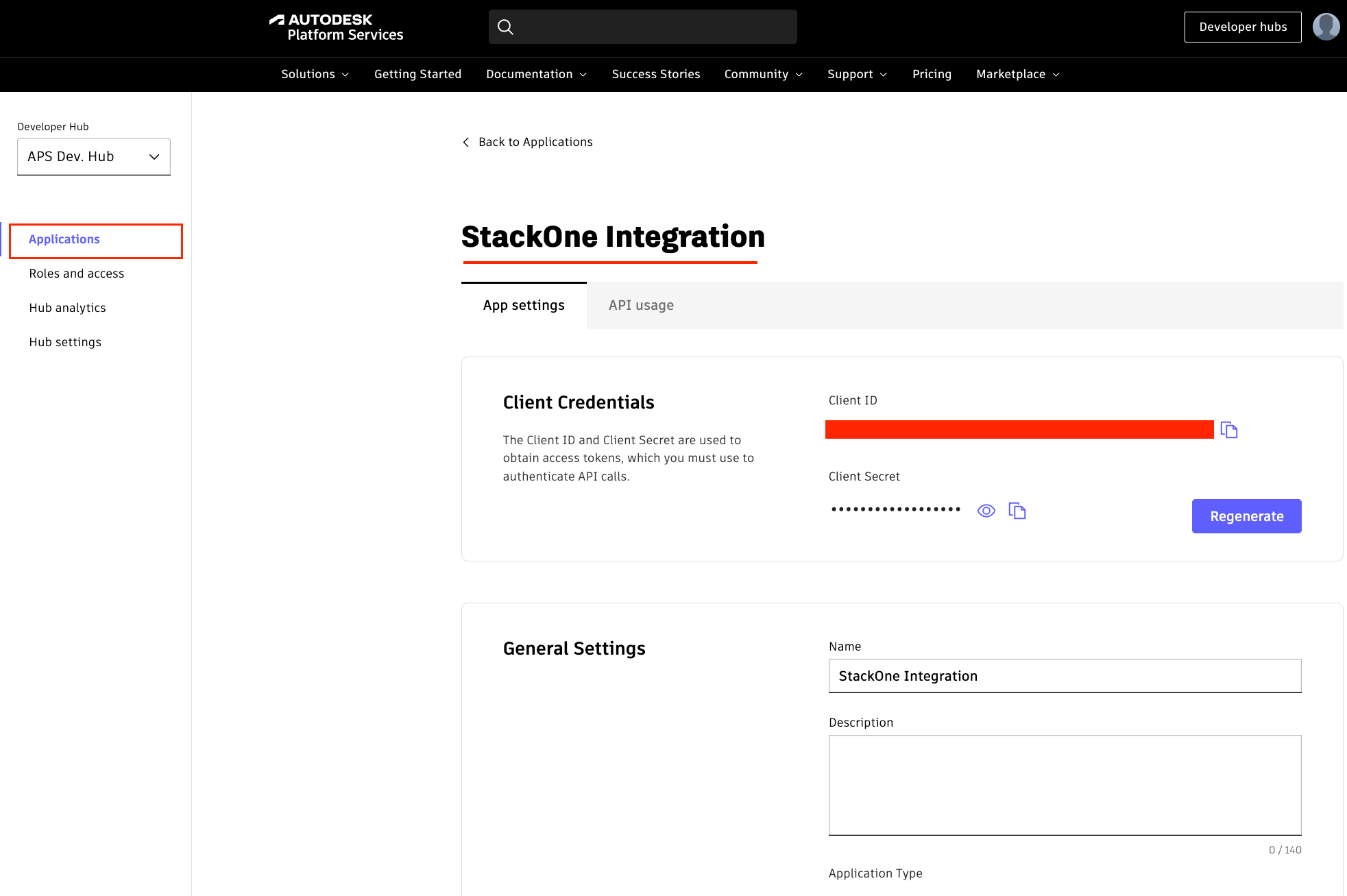

The Client Credentials section showing the Client ID and Client Secret fields with a Regenerate button.

Creating the StackOne Connector Profile

To create the Connector Profile in StackOne for Autodesk:

Navigate to Connector Profiles

Create New Connector Profile

Click + Connector Profile
Search for and select Autodesk
Select Type as OAuth 2.0 (Two-Legged)
Fill out the fields using details retrieved from your provider:
- Client ID
- Client Secret
- Scopes (Optional)
(Optional) Select Actions to be enabled for this Connector Profile
Click Create profile

Congratulations! The new Connector Profile will now show up in your project ready to be used. You can now continue to Link Accounts for Autodesk.
