Workday Integration

​

0. At a Glance

• Connector: Workday LMS External Content Provider
• Supported Write Resources: Content (upsert), Completions (push), Categories (list/get)
• Integration Direction: Bidirectional (content push, completion tracking)
• Partnership Requirements: Standard Workday tenant access required
• Key Behaviours:
  • Auto-completes content when users launch from Workday UI
  • Uses both external_reference and title for content deduplication
  • Requires base64 encoded cover images
• Key Quirks:
  • Auto-creates enrollments and completions, causing potential discrepancies
  • Content categorization may show as internal even for external providers
  • Rate limited to 5-10 requests per second

​

1. Integration Overview

​

1.1 What This Connector Does

• Content appears in Workday’s Learning → Discover section
• Users can filter content by topics, languages, and content providers
• When users launch content, they’re directed to your platform while Workday tracks their progress

• Workday automatically creates course wrappers around individual content items
• Content integrates seamlessly with Workday’s existing catalog
• Workday manages the enrollment and completion lifecycle

​

1.2 System UI Overview (Video)

​

1.3 High-Level Data Flow

​

2. Requirements & Prerequisites

​

2.1 Partnership / Commercial Requirements

• Vendor partnership: Not required - standard integration
• Customer-specific setup: Yes - Workday tenant configuration required
• Marketplace approval: Not required
• Any mandatory agreements or feature enablement: Standard Workday LMS module access

​

2.2 System-Side Prerequisites

• Required modules: Workday Learning Management System
• Required admin permissions: Learning Administrator role for content management
• Required system features: External content feature enabled in Workday tenant

​

2.3 StackOne-Side Prerequisites

• Required connector meta fields: Content categories configuration
• Required configuration flags: Enrollment requirements, mobile content duplication
• Sandbox/test requirements: Workday sandbox tenant for testing

​

3. Behaviour of Write Operations

​

3.1 Content / Object Upsert

• If a title matches existing content, Workday updates the external_reference
• This ensures content remains unique even if references change

• Creation: Workday automatically creates a course wrapper with these defaults:
  • Lesson Order: 1
  • Lesson Mandatory: True
  • Registrable Status: Open
  • Requires Enrollment: True (configurable)
• Updates: Workday updates existing content based on the matching rules above
• Disabling content: Set the active field to false to hide courses from learners

• Cover images must be base64 encoded (StackOne handles this automatically)
• Content must include a valid Workday category
• Categories must be customer-specific or retrieved from the unified categories endpoint

​

3.2 Completion / Status Push

• StackOne updates existing completion records instead of creating duplicates
• This prevents discrepancies between your platform and Workday

​

3.3 Additional Writeable Resources

• List/get categories from Workday tenant
• Required for content categorization during upsert

​

4. Field-to-UI Mapping

​

4.1 Overview

​

4.2 Mapping Table

Unified API Field	Workday Field / Behaviour	UI Location	Screenshot Placeholder	Notes
title	Course & Lesson Title	Discover card + Course header		Updates everywhere when changed
external_reference	Learning Course ID	Admin View		Must be unique; changing creates new course

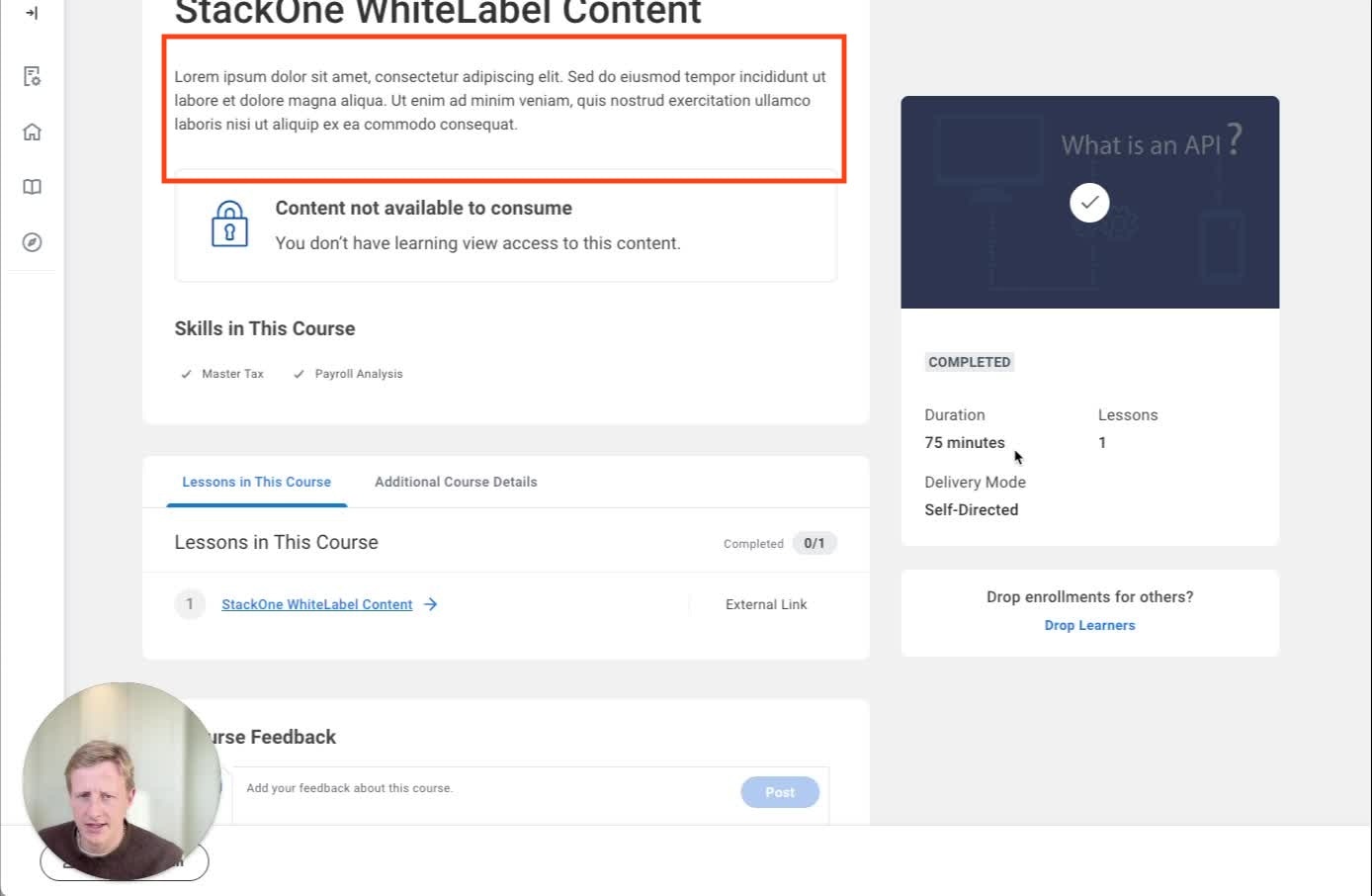

description	Description	Course page		HTML stripped; truncated on tiles

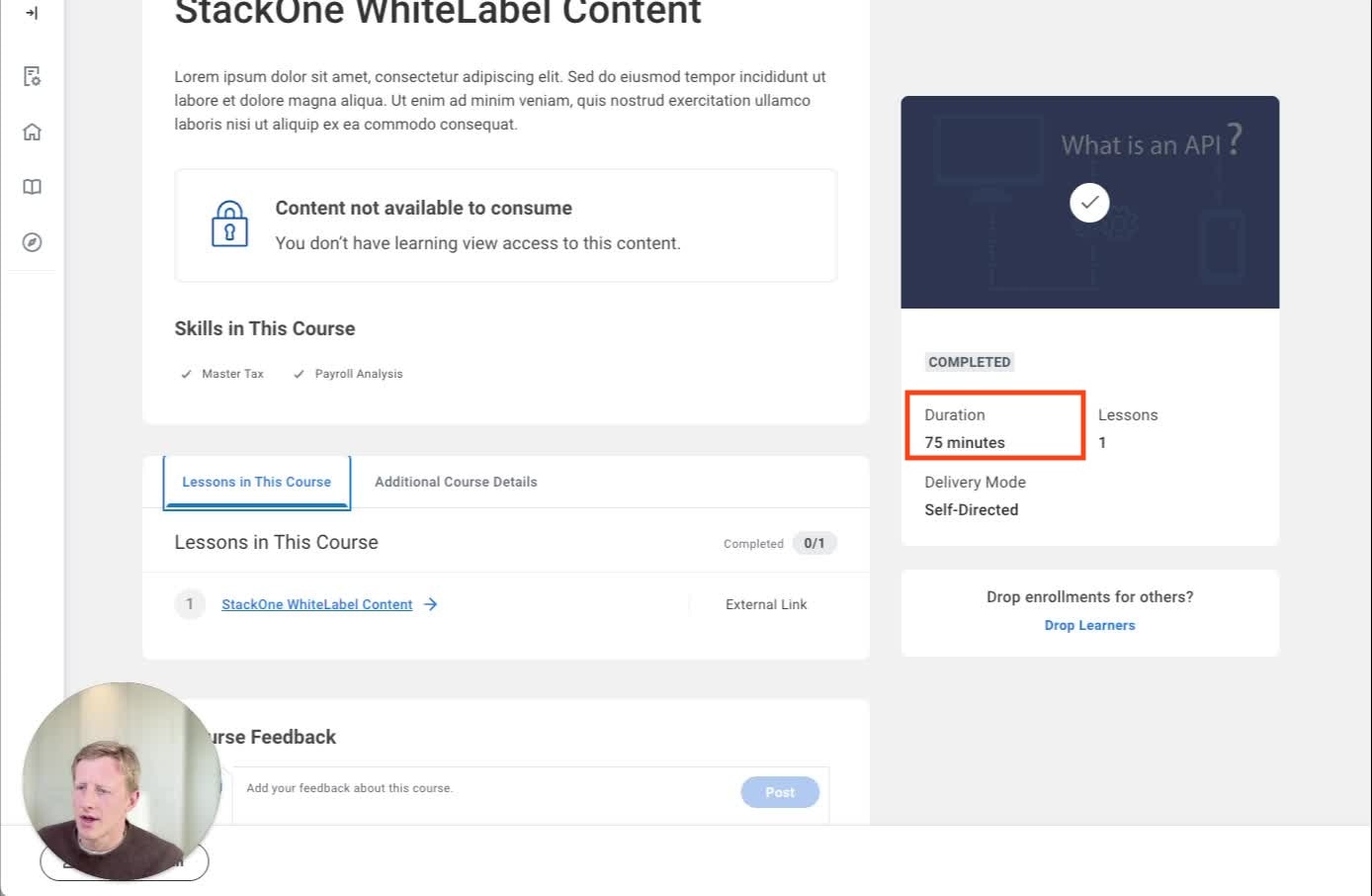

duration	Time Value Reference + Total Course Duration	Course page + Admin		ISO-8601 converted to minutes

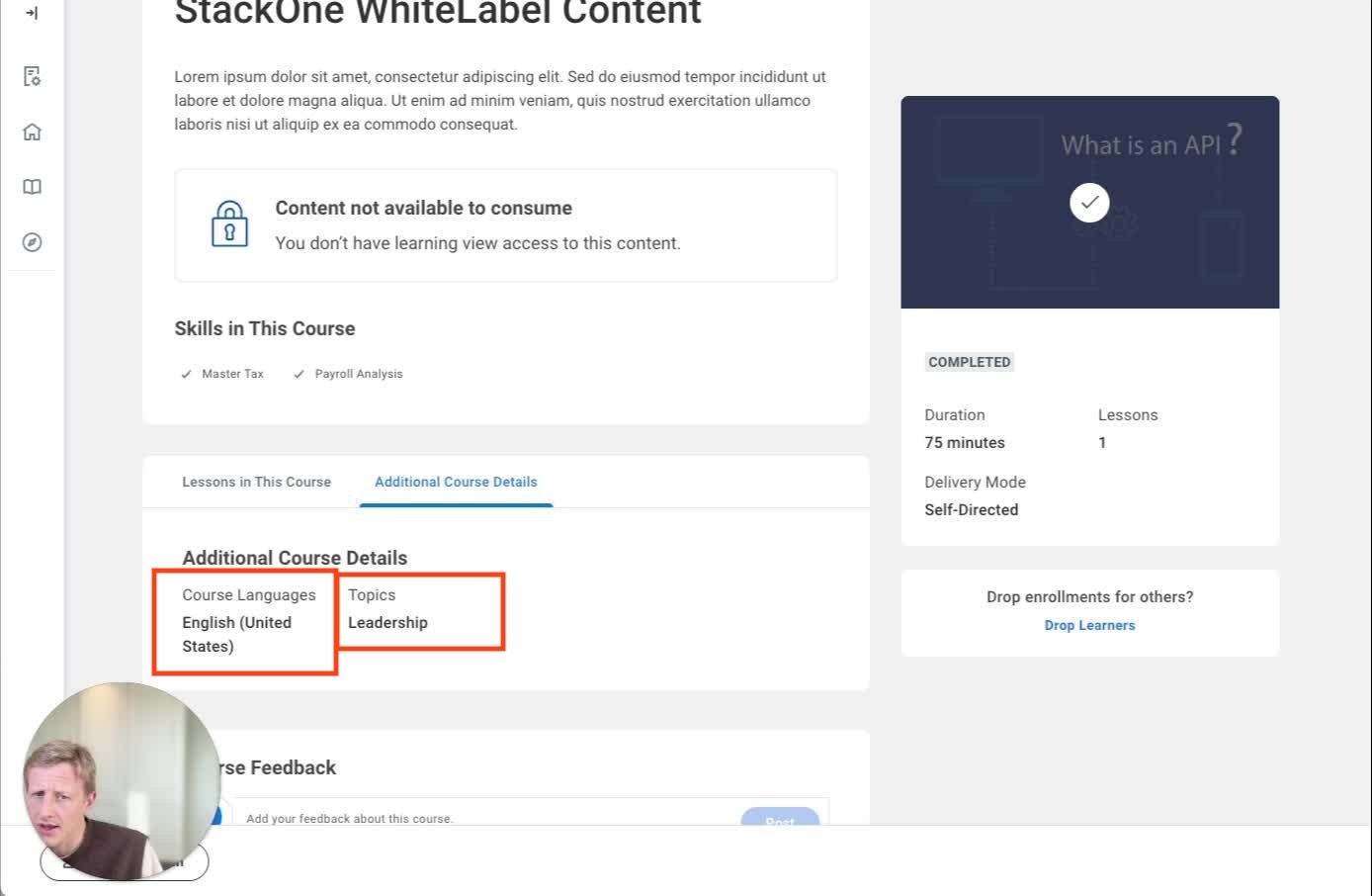

categories	Topics Reference	Additional Course Details		Must match existing topics

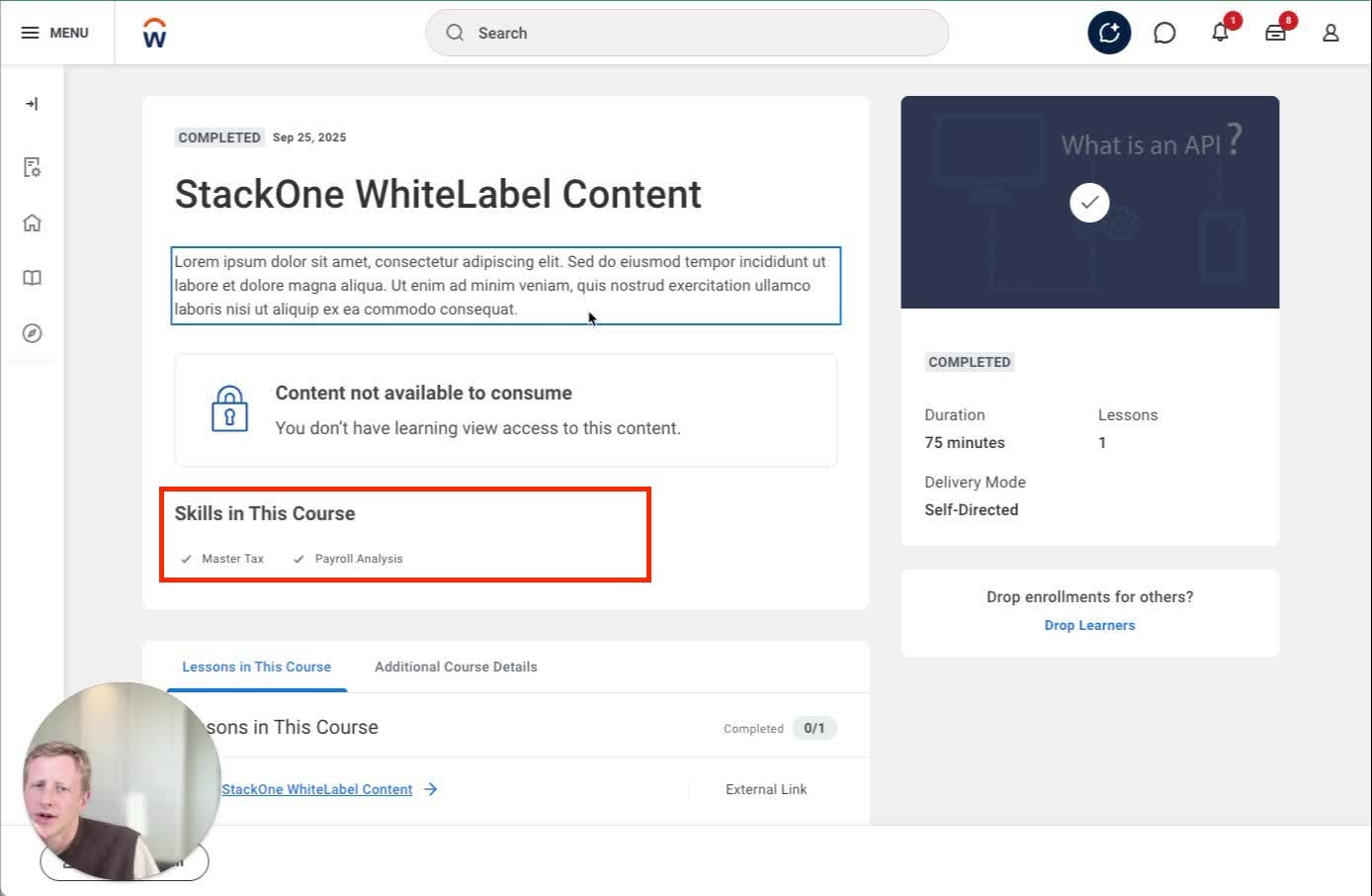

skills	Skill Reference	Course page		Unknown skills cause failure
languages	Language Reference	Additional Details		Only first language displayed
content_url	External Content URL	Admin → Lessons		Hidden from learners; launched via Start/Enroll

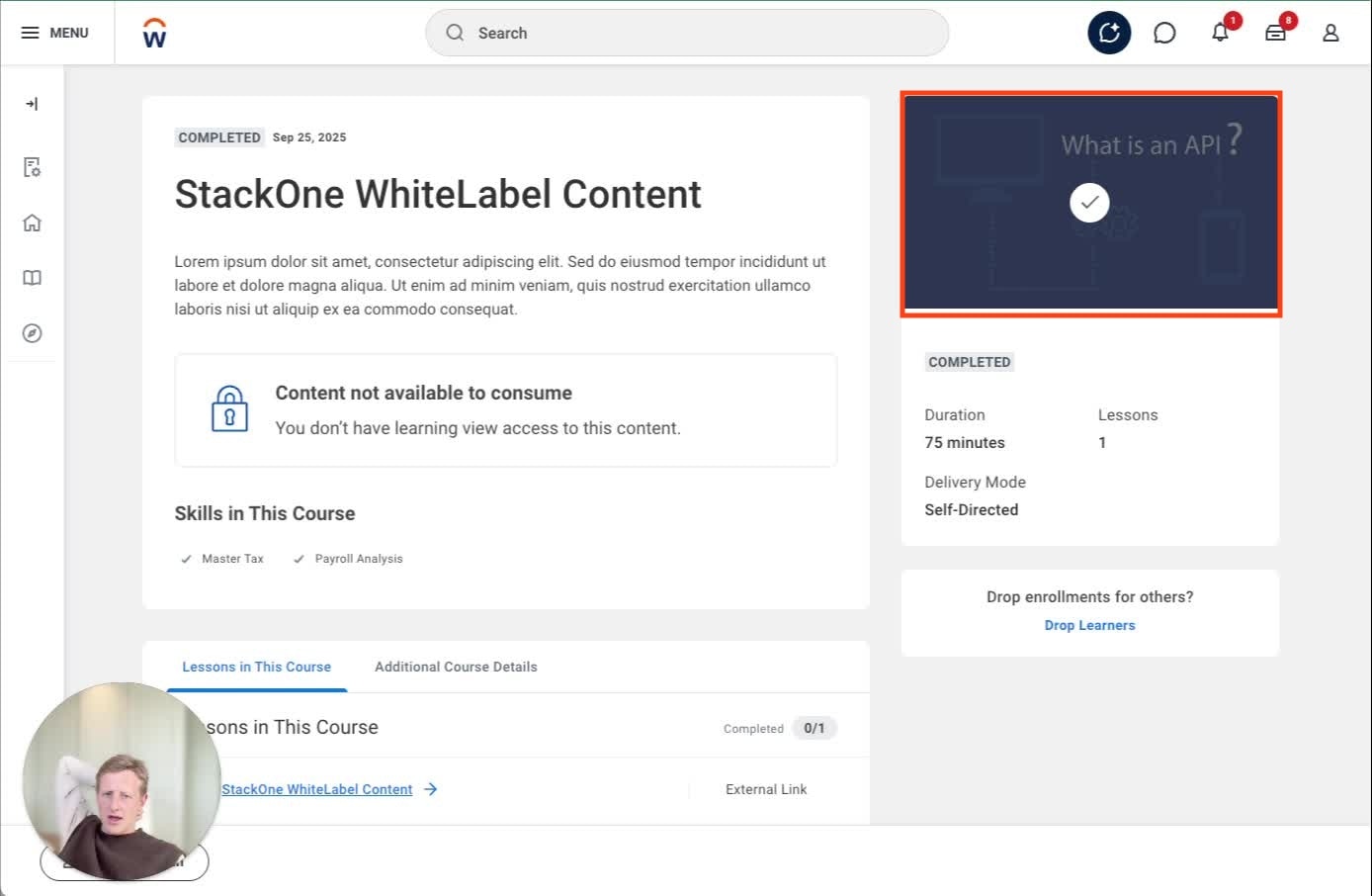

cover_url	Course Image Data	Discover tile + Course page		Must be publicly accessible
active	Inactive	Admin		false → hides course

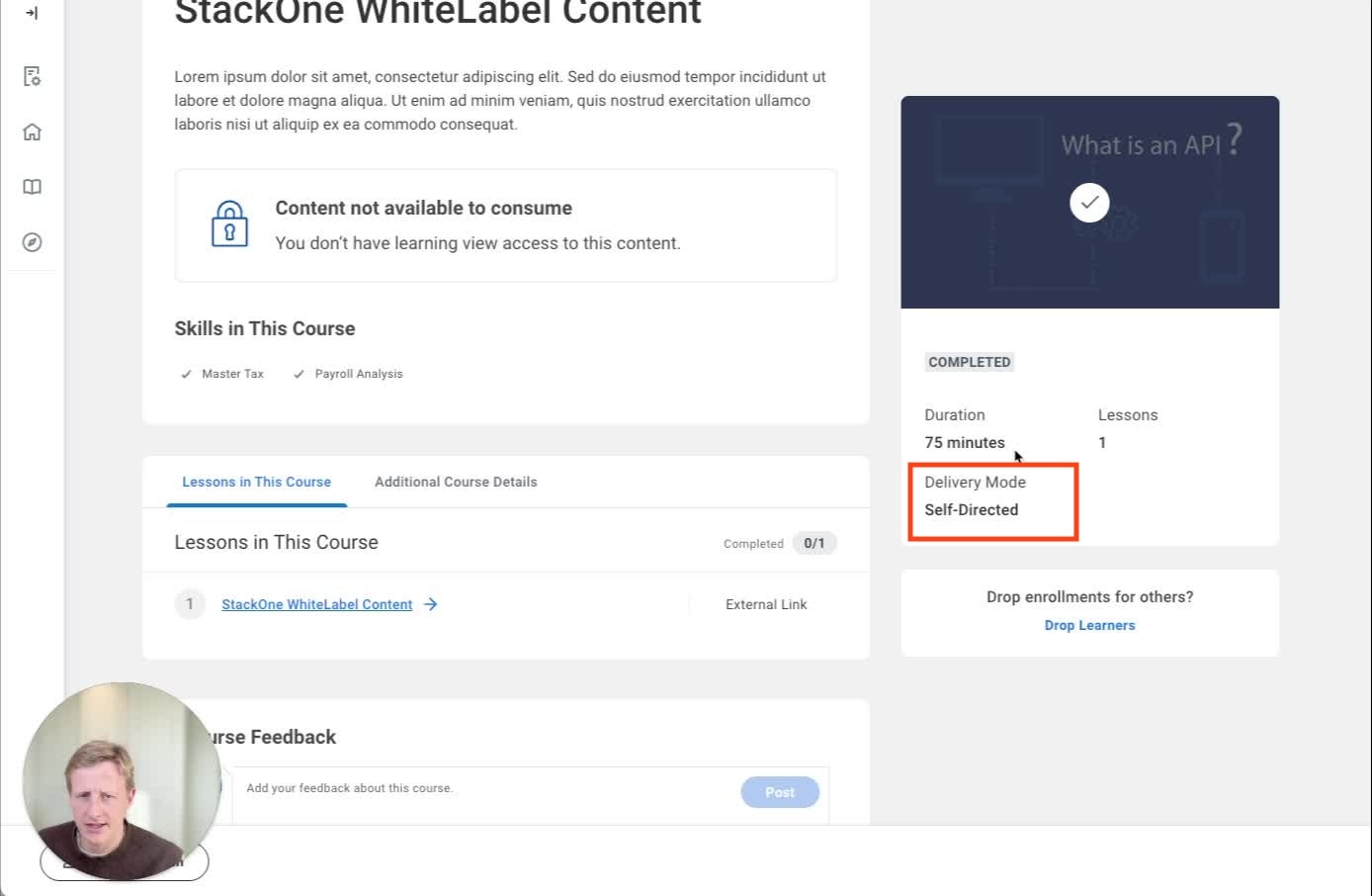

requires_enrollment	Requires Enrollment	Admin		false → self-directed
mobile_url	Mobile Lesson	Lessons tab		Creates additional mobile lesson

​

4.3 UI Walkthrough

​

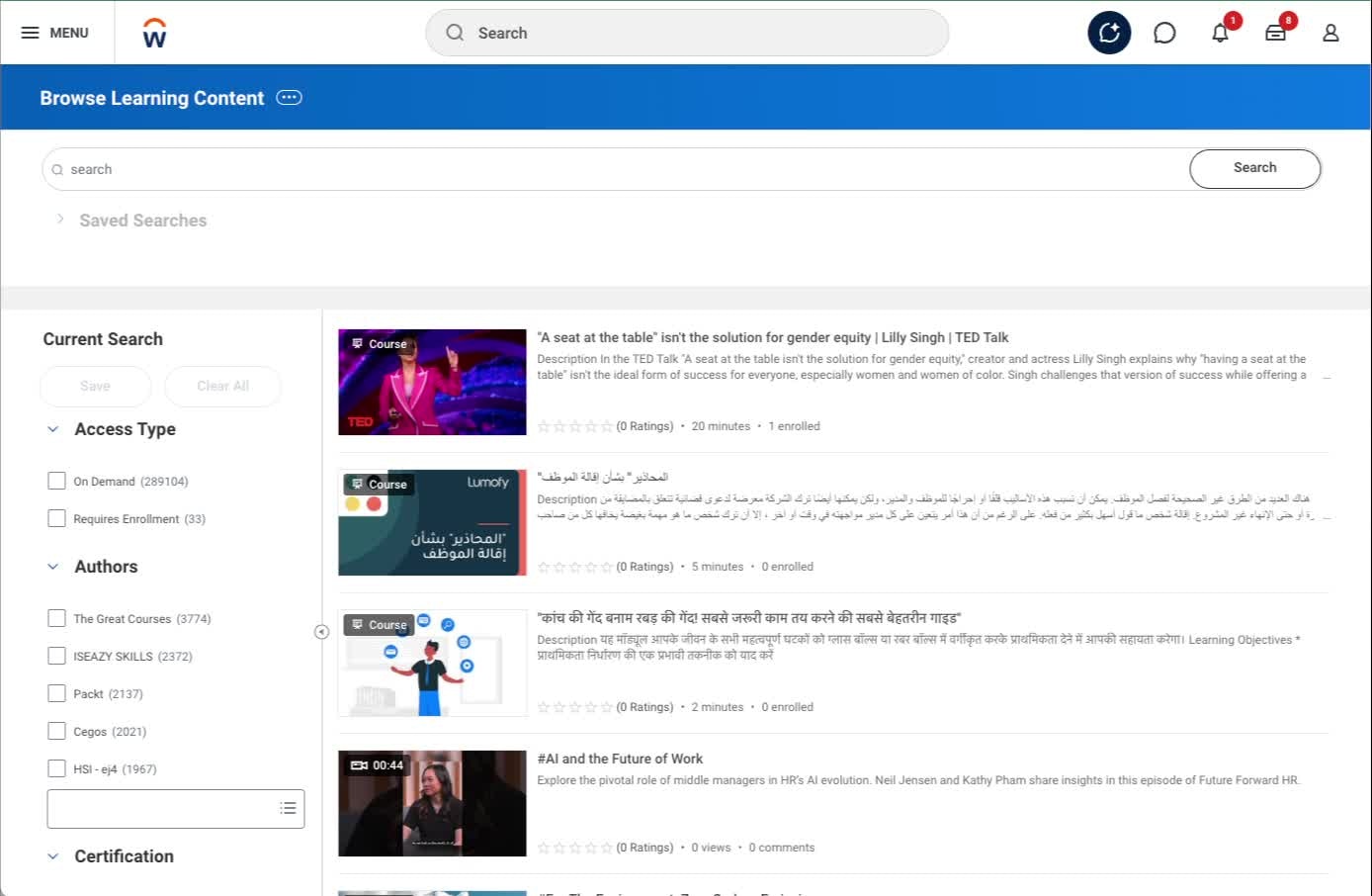

4.3.1 Discover Catalogue

• Course appears with:
  • Cover image
  • Title
  • Duration
  • Short description excerpt
• Users can filter by Topic, Language, Content Provider

Screenshot: Screenshot: Screenshot:

​

4.3.2 Course Page (Learner View)

• Full description
• Skills
• Cover image
• Start/Enroll button
• Completion badge if completed

Screenshot:

​

4.3.3 Lessons in This Course

• Lesson 1 auto-generated
• Type: External Lesson
• Required flag visible

Screenshot:

​

4.3.4 Admin View

• External Reference
• Requires Enrollment
• Enforce Lesson Order
• Topics, Skills, Languages

​

5. Derived Values & Defaults

​

5.1 Derived / Computed Values

• Cover images: URLs converted to base64 encoding automatically
• Duration: ISO-8601 format converted to minutes for Workday display
• Course wrapper: Auto-generated around individual content items

​

5.2 System Defaults Applied by StackOne

• Content requires enrollment: True (configurable at account level)
• Lesson Mandatory: True
• Lesson Order: 1
• Registrable Status: Open
• Course creation: Auto-wraps individual content in course structure

​

5.3 Hardcoded / Strict Enums

• Languages: Locale codes (e.g., en_gb)
• Result: pass or fail
• Categories: Must match existing Workday categories or use unified categories endpoint

​

6. Configuration

​

6.1 StackOne Config Options

• Enrollment Required (Content): Yes/No - Controls whether content requires enrollment
• Create Duplicate Content for Mobile: Yes/No - Creates additional mobile lesson when mobile_url provided
• Content Categories: Customer-specific category mapping

​

6.2 System-Level Configuration

• External content feature must be enabled in Workday tenant
• Learning Administrator role assigned to managing users
• Category structure configured for content organization

​

6.3 Identity / SSO Mapping

• Users identified through Workday’s internal user management
• Completions linked via learning_object_external_reference
• Auto-enrollment creates user-content relationships

​

6.4 Account Configuration

• Requires Enrollment (Account): Yes/No - Toggle whether a user needs approval to launch a course.
• Media File ID (WID): If using the Media File CompletionBlocker approach, enter the Workday WID of the file used for the blocker.

​

7. Quirks & Limitations

​

Known Limitations

• 5-10 requests per second maximum

• Must be base64 encoded (StackOne handles this automatically)
• If URL conversion fails, the content upsert will fail

• Workday doesn’t natively support mobile-specific URLs
• Requires creating a duplicate lesson (see Section 6.1 for configuration)

​

System-Specific Behaviors

• Content may appear categorized as “internal” even when it links to an external provider
• This is a Workday UI behavior and doesn’t affect functionality

• Workday automatically marks content as complete when users launch it from the UI
• For single-lesson courses, Workday completes the entire course immediately on launch

• Workday uses both external_reference AND title for deduplication
• This differs from other LMS systems that typically use only the external reference

​

Potential Issues and Solutions

• StackOne updates existing completion records instead of creating new ones
• Use the DELETE user completion endpoint to clean up incorrect records
• Consider the SCORM course blocker workaround for auto-completion issues (see Section 8 → Integration Configurations)

​

8. Testing & Validation

​

8.1 Recommended Test Cases

1. Content Creation: Push new content with all fields → Verify appears in Discover with correct metadata
2. Content Update: Update existing content title → Verify deduplication works correctly
3. Completion Push: Send completion for enrolled user → Verify updates existing record without duplicate
4. Mobile Content: Push content with mobile_url and mobile duplication enabled → Verify two lessons created
5. Category Validation: Push content with invalid category → Verify appropriate error handling
6. Cover Image Handling: Push content with URL-based cover image → Verify base64 conversion success

​

8.2 Sample Payloads

// Content Upsert (PUT /unified/lms/content)
{
  "title": "Advanced Sales Techniques",
  "external_reference": "ADV-SALES-001",
  "description": "A comprehensive course covering modern B2B sales strategies.",
  "languages": [
    { "value": "en_GB" },
    { "value": "fr_FR" }
  ],
  "content_url": "https://provider.example.com/courses/adv-sales-001",
  "cover_url": "https://cdn.example.com/images/adv-sales-001.jpg",
  "active": true,
  "duration": "PT1H30M45S",
  "skills": [
    { "id": "skill-001", "name": "Sales Techniques", "hierarchy": { "value": "primary" }, "language": { "value": "en_GB" } },
    { "name": "Customer Engagement", "hierarchy": { "value": "secondary" } }
  ],
  "order": 1,
  "categories": [
    { "name": "Sales" },
    { "id": "cat-technology", "name": "Technology" }
  ],
}

// Completion Push (POST /unified/lms/users/{id}/completions)
{
  "learning_object_external_reference": "ADV-SALES-001",
  "result": { "value": "Pass" },
  "completed_at": "2025-01-15T14:45:30.000Z",
  "time_spent": "PT45M",
  "score": {
    "value": 100,
    "raw_value": "A+"
  }
}

​

8.3 Troubleshooting Checklist

​

8.4 Troubleshooting Unified Logs

​

Expected Request Patterns for Each Content Item

• Update: If content already exists (based on the earlier GET requests)
• Create: If the content is new

​

Integration Configurations

​

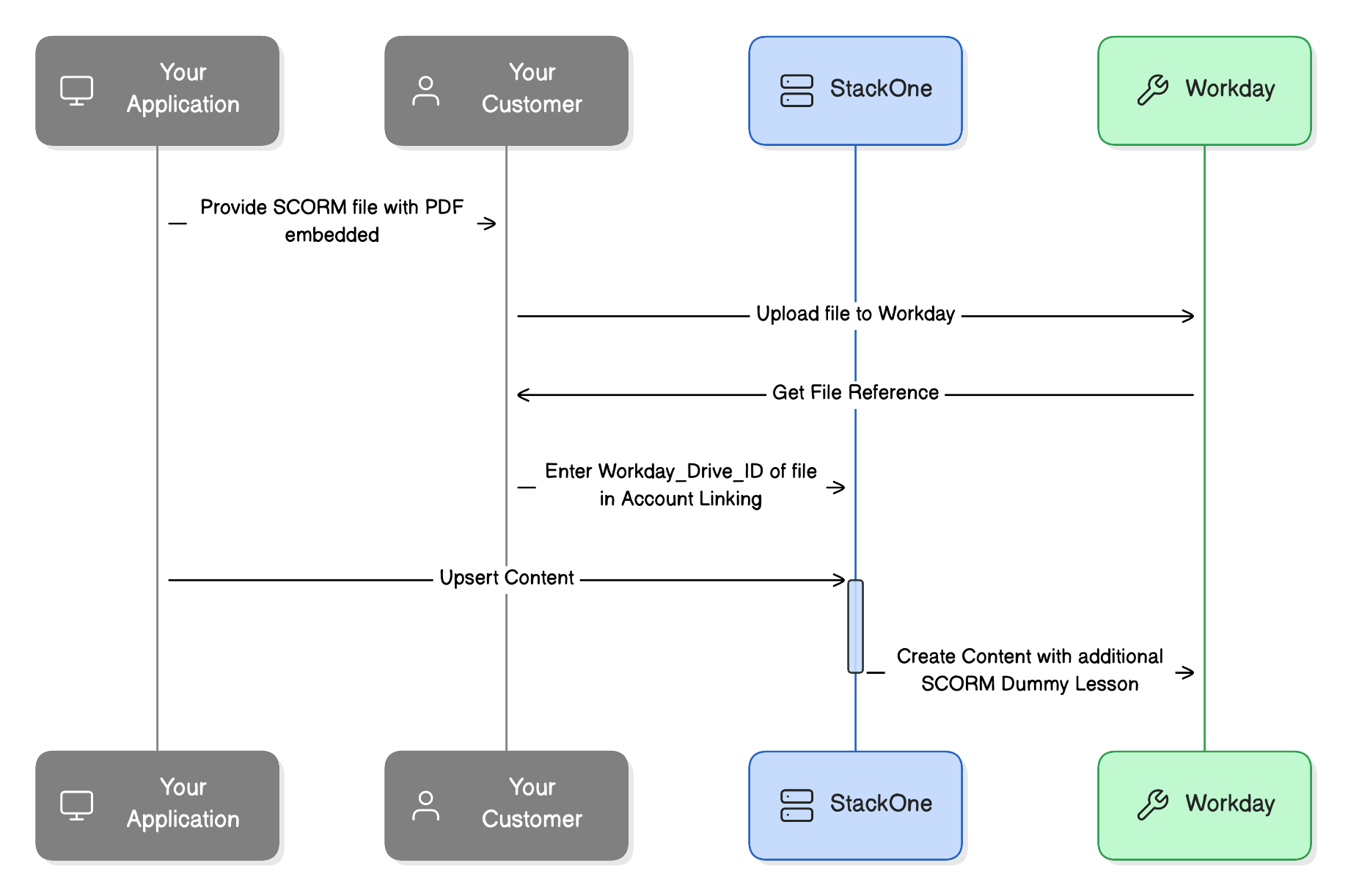

Media File Completion Blocker

​

Mobile Content Lesson

1. Configure the Create Duplicate Content for Mobile to Yes in the Integration Configuration
2. Include a value in the Mobile Launch Content URL field.
